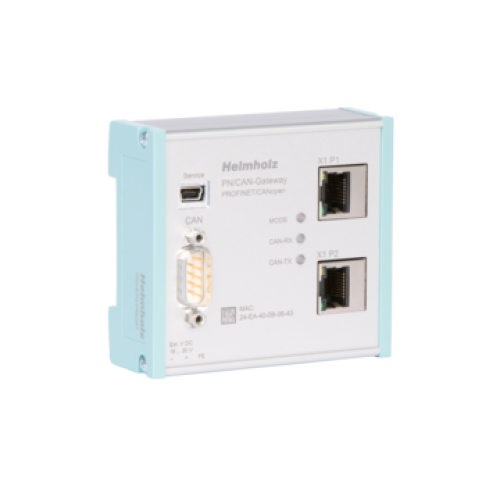

• PN/CAN-Gateway 700-670-PNC01
General information
Order number700-670-PNC01
Article namePN/CAN gateway, PROFINET/CANopen Master
Scope of deliveryPN/CAN-Gateway
Dimensions (DxWxH)35 x 84 x 76 mm
WeightApprox. 160 g
PROFINET interface
ProtocolPROFINET IO as defined in IEC 61158-6-10
Physical layerEthernet
Transmission rate100 Mbps
I/O image sizemax. 1440 bytes of input / 1440 bytes of output data
ConnectionRJ45 socket
FeaturesMedia Redundancy Protocol (MRP), automatic addressing / topology detection (LLDP, DCP)
CAN interface
TypeISO/DIN 11898-2 CAN High-speed physical layer
Transmission rate50, 100, 125, 250, 500, 800, 1000 kbps
ProtocolCANopen® master as defined in DSP301 V4.2
Connection9-pin D-sub male connector
TPDOs16 per slave
RPDOs16 per slave
FeaturesUp to 126 slaves, Heartbeat, Nodeguarding, Sync
USB interface
ProtocolFull-speed USB 2.0 device
Isolation voltage1.5 kV
Electrical isolationYes
Status indicator3 LEDs, function status
4 LEDs, Ethernet status
Voltage supply24 V DC, 18–30 V DC
Current drawMax. 250 mA with 24 V DC
Ambient conditions
Ambient temperature0 °C ... +60°C
Transport and storage temperature-20 °C … +80 °C
Relative air humidity95 % r H without condensation
Pollution degree2
Protection ratingIP20
CertificationsCE, UL
ULUL 61010-1/ UL 61010-2-201
Voltage supply24 V DC (18 ... 30 VDC, SELV and limited energy circuit)
Pollution degree2
AltitudeUp to 2000 m
Temperature cable rating87 °

PN/CAN-Gateway 700-670-PNC01

  • Marca: HELMHOLZ
  • Ref: 700-670-PNC01
  • Disponibilidad: 5-7 Dias
  • 0,00€

  • Con impuestos: 0,00€
  • Portes Gratis
  • Agotado temporalmente
