| General information | ||
|---|---|---|
| Order number | 700-841-5ES01 | |
| Article name | Ethernet-Switch 5-port, unmanaged, 10/100/1000 Mbps | |
| Scope of delivery | Ethernet 5-port switch with power supply plug, short manual | |
| Dimensions (DxWxH) | 32.5 x 48.5 x 80.5 mm | |
| Weight | Approx. 115g | |
| LAN interface | ||
| Number | 5 | |
| Type | 10/100/1000Base-T/TX, Full/Half-Duplex, Auto negotiation, Auto MDI/MDI-X | |
| Connection | RJ45 | |
| Transmission rate | 10/100/1000 Mbps | |
| Status indicator | 1 LEDs power display, 10 LEDs Ethernet status | |
| Voltage supply | 24 V DC (18...30 V DC) | |
| Current draw | max. 130 mA with 24 V DC | |
| Power dissipation | 3,2 W | |
| Ambient conditions | ||
| Ambient temperature | -25 °C … +75 °C | |
| Transport and storage temperature | -40 °C … +85 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE, UL | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
| UL | ||
| UL | UL 61010-1/ UL 61010-2-201 | |
| Voltage supply | DC 24 V (18 ... 30 VDC, SELV and limited energy circuit) | |
| Pollution degree | 2 | |
| Altitude | Up to 2000 m | |
| Temperature cable rating | 87 °C | |

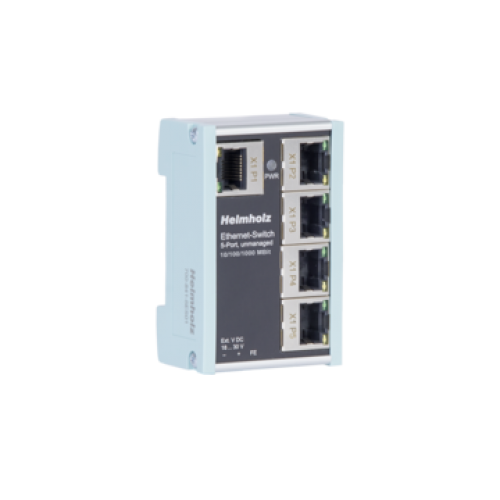

Conmutador Industrial Ethernet-Switch 700-841-5ES01
- Marca: HELMHOLZ
- Ref: 700-841-5ES01
- Disponibilidad: 5-7 Dias
-
0,00€
- Con impuestos: 0,00€
- Portes Gratis
- Agotado temporalmente
