| General information | ||
|---|---|---|
| Order number | 700-850-8PS01 | |
| Article name | PROFINET Switch 8-port, managed | |
| Scope of delivery | PROFINET Switch 8-port, Quick Start Guide, CD with GSDML-File | |
| Dimensions (DxWxH) | 32,5 x 83,5 x 76,5 mm | |
| Weight | Approx. 180 g | |
| PROFINET interface | ||
| Number | 8 | |
| Protocol | PROFINET IO Device as defined in IEC 61158-6-10 | |
| Physical layer | Ethernet | |
| Transmission rate | max. 100 Mbps | |
| Connection | RJ45 socket | |
| Features | Media Redundancy Protocol (MRP), automatic addressing / topology detection (LLDP, DCP), conformance class B | |
| Status indicator | 4 LEDs, function status 16 LEDs, Ethernet status | |
| Voltage supply | 24 V DC (18...30 V DC) | |
| Current draw | Max. 350 mA with 24 V DC | |
| Power dissipation | Max. 2 W | |
| Ambient conditions | ||
| Ambient temperature | -40 °C ... +75°C | |
| Transport and storage temperature | -40 °C … +85 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE, UL | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
| UL | ||
| UL | UL 61010-1/ UL 61010-2-201 | |
| Voltage supply | DC 24 V (18 ... 30 V DC, SELV and limited energy circuit) | |
| Pollution degree | 2 | |
| Altitude | Up to 2,000 m | |
| Temperature cable rating | 87 °C | |

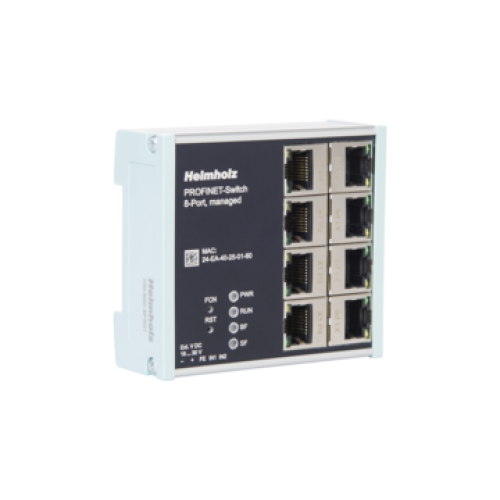

PROFINET-Switch 700-850-8PS01
- Marca: HELMHOLZ
- Ref: 700-850-8PS01
- Disponibilidad: 5-7 Dias
-
0,00€
- Con impuestos: 0,00€
- Portes Gratis
- Agotado temporalmente
