General information
	Order number	700-875-UMT01

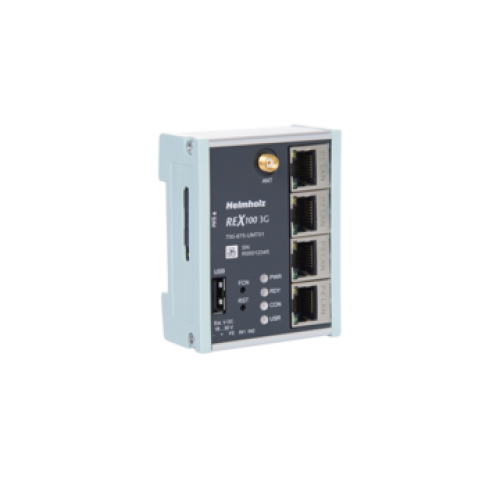

	Article name	REX 100 3G, 4 x LAN (switch)/1 x 3G modem (UMTS)
	Scope of delivery	REX 100 3G, Quick Start Guide
	Dimensions (DxWxH)	37 x 58,5 x 76,5 mm
	Weight	Approx. 130 g
Number of inputs \| type		2 \| 24 V (DC), as per DIN EN 61131-2 Type 2
GSM modem
	GSM-Modem	Quad-band GPRS/EDGE data interface
	Antenna terminal	SMA socket (exterior thread)
	SIM card type	Standard SIM, 1.8 V/3 V
	GSM frequency bands	GSM/GPRS/EDGE: 850, 900, 1800, 1900
	UMTS frequency bands	UMTS/HSPA: 800/850, 900, AWS 1700, 1900, 2100 class 1
	Transmit power	Class 1, E2, 3, 4
	Data transmission rate	HSPA+ (upload: 5.76 Mbps \| download: 21.0 Mbps)
LAN interface
	Number	4
	Type	10 Base-T/100 Base-T
	Connection	RJ45 socket
	Transmission rate	10/100 Mbps
USB interface
	Protocol	USB 2.0 host
	Connection	USB A socket
Status indicator		4 LEDs, function status 8 LEDs, Ethernet status
Voltage supply		24 V DC, 18–30 V DC
Current draw		Max. 200 mA with DC 24 V
Power dissipation		Max. 4.8 W
Ambient conditions
	Ambient temperature	-40 °C ... +75°C
	Transport and storage temperature	-40 °C … +85 °C
	Relative air humidity	95 % r H without condensation
	Pollution degree	2
	Protection rating	IP20
	Certifications	CE, UL
CE
	RoHS	Yes
	REACH	Yes
UL
	UL	UL 61010-1/ UL 61010-2-201
	Voltage supply	DC 24 V (18 ... 30 V DC, SELV and limited energy circuit)
	Pollution degree	2
	Altitude	Up to 2,000 m
	Temperature cable rating	87 °C

REX 100 Ethernet Router 700-875-UMT01
