Part # SMB824503519S3M64M2

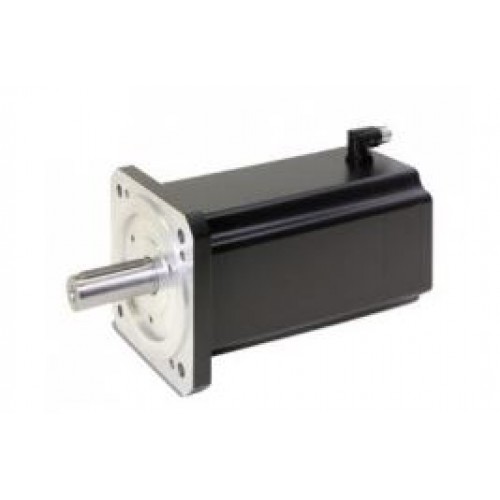

[SMB] : SMB-Series Brushless Servo Motor - for use with SBC Series Drives

[    ]    : No Brake Option

[    ]    : No Cooling Option

[82]    : 82mm Frame Motor

[45]    : 4500 RPM / 230V Winding

[03]      : 3.0Nm Continuous Stall Torque

[5]      : Flange 5

[19]    : Shaft 19mm Diameter x 40mm Length

[S]      : Smooth Shaft without Keyway

[3M]      : Terminal Box, Rear Facing

[64]      : IP64 Protection Class

[    ]      : Resolver Feedback (Standard)

[M]      : Increased Inertia - Medium Version

[2]      : 230V Winding
