Mechanical features

Housing material
Metal
Mechanical mounting condition for sensor
Flush
Thread length
18mm
Housing material
Stainless steel 1.4305
Ambient temperature
-25 - 70°C
Thread pitch
0.5mm
Material of cable sheath
PUR (Polyurethane)
Max. tightening torque
1.5Nm
Housing design
Cylinder, screw-thread
Sensor length
25mm
Cable length
2m
Number of wires
3
Thread size, metric
5
Active area material of sensor
POM
Degree of protection (IP)
IP67

Electrical features

Voltage type
DC
Switching frequency
2000Hz
Type of electrical connection
Cable
Type of switching function
Normally open contact
Supply voltage
10 - 30V
No-load current
5.5mA
With LED display
yes
Reverse polarity protection
yes
Correction factor (St37)
1
Correction factor (aluminum)
0.3
Correction factor (copper)
0.2
Norm measuring plate
5x5x1mm
Suitable for safety functions
no
Switching distance
0.8mm

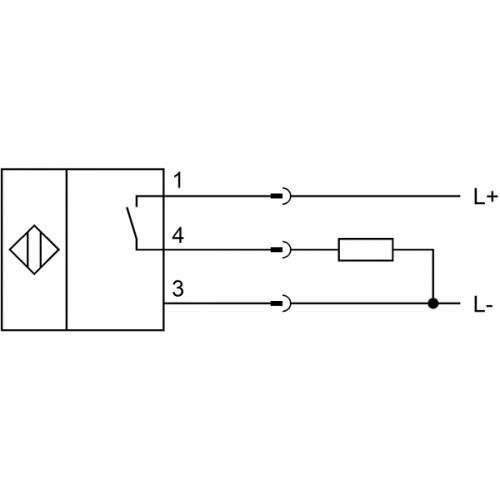

Type of switching output
PNP
Rated control supply voltage Us at DC
10 - 30V
Max. output current
200mA
Relative repeat accuracy
10%
Short-circuit protection
yes
Hysteresis
15%
Correction factor (stainl. steel)
0.7
Correction factor (brass)
0.4
Voltage drop
1.5V

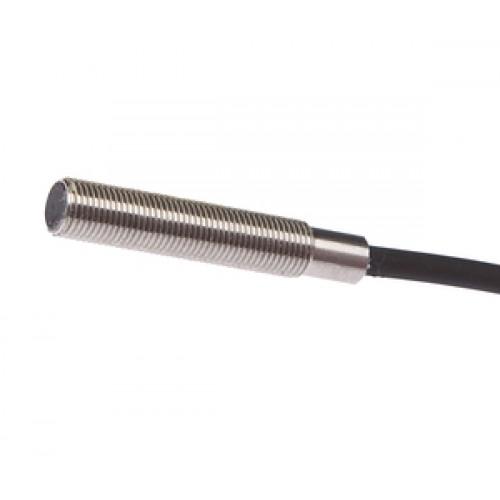

SENSOR INDUCTIVO IPF ELECTRONIC IB050104

  • 39,95€

  • Con impuestos: 48,34€
  • Portes Gratis
  • Agotado temporalmente


Este producto necesita un pedido mínimo de 5
