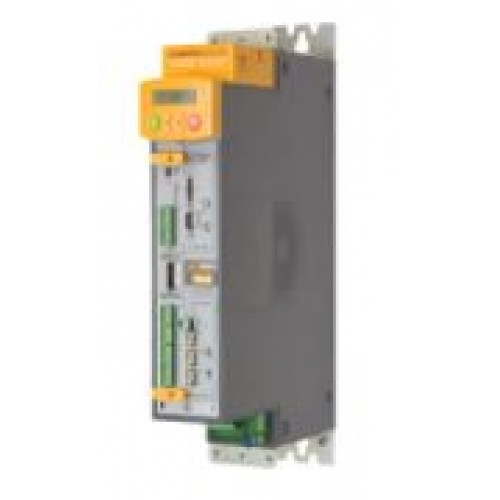

• DRIVER PARKER  AC890 Series 890SD-532300C0-B00-1A000

Technical Specifications

  • Input Voltage:3*400/500VAC
  • Aux Supply Input Voltage:None
  • Output kW Rating (Normal Duty):15
  • Series:AC890SD Standalone Drive Module
  • Brake Switch Option:Yes
  • Special Options:None
  • Brand:Parker
  • Product Type:AC Drive
  • Drive Axis Type:Single Axis Technology
    Multi Axis Technology
  • Product Series:AC890
  • Input Voltage:3*400/500VAC
  • Output Power:15 kW
  • Compatible Motor Type:Brushless Servo
    Frameless Servo
    Induction
    Spindle
    Torque
    PMAC
  • Compatible Feedback Device:Resolver
    Incremental Encoder
  • Modes of Control:V/Hz
    Sensorless Vector
    Closed Loop Vector
    Active Front End
    Speed Control of Permanent Magnet Motor
  • Communication Interface:RS232 / RS485
    CANopen
    ControlNet
    DeviceNet
    Profibus
    Profinet
    Ethernet TCP/IP
  • Operating Temperature:0-45C for Frames B-F (derate up to 50C max)
    0-40C for Frames G-K (derate up to 50C max) °C, 32-113F for Frames B-F (derate up to 122F max)
    32-104F for Frames G-K (derate up to 122F max) °F
  • Operating Altitude:Up to 1000m ASL (derate > 1000m)
  • Overload Rating:Heavy Duty Rating (Constant Torque) : 150% for 60s
    Normal Duty Rating (Variable Torque) : 110% for 60s
    Servo Mode Rating (Frames B-D) : 200% for 4s
    Servo Mode Rating (Frames E-J) : 150% for 60s
  • Specifications Met:CE (EMC & LVD)
    UL Listed
    cUL Listed

DRIVER PARKER AC890 Series 890SD-532300C0-B00-1A000

  • Marca: PARKER
  • PARKER
  • Ref: 890SD-532300C0-B00-1A000
  • Disponibilidad: En Stock
  • 0,00€

  • Con impuestos: 0,00€
  • Portes Gratis
  • En stock - 1 unidades
